Indigo image analysis system | Aprotec Instrumentation

Image Analysis

Indent Measurement "One Click Away"

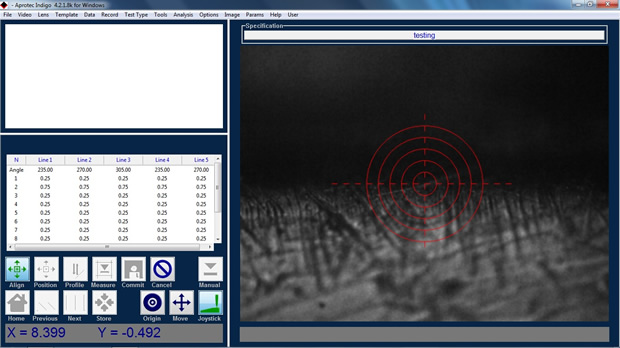

Indigo

Indigo has been developed as a direct replacement for the Windows 98 based In2View system most commonly fitted to Mitutoyo hardness testing machines.

Automatically traverses a pre-programmed sample to obtain case hardening results and graphical representation.

Indigo.Major Features

  • Retrofit to existing machinery

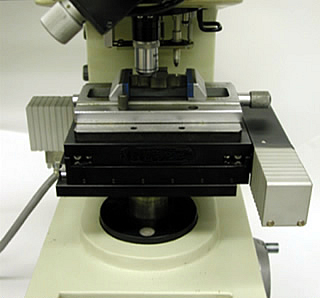

  • Ergonomic Motorised stage
  • Excellent positional accuracy
  • Measurement repeatability with Digivision software

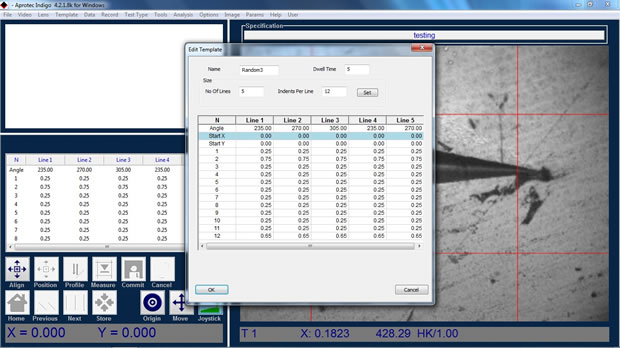

  • Easy to use Programming software
  • Secondary Joystick control of Stage.
  • Standard 100mm x 75mm Stage movement.

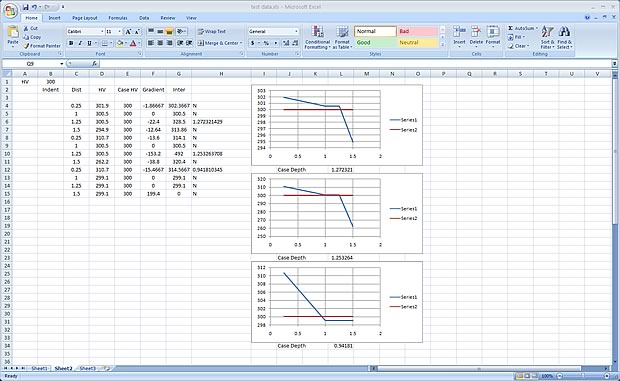

  • Notepad’ & Excel Data manipulation

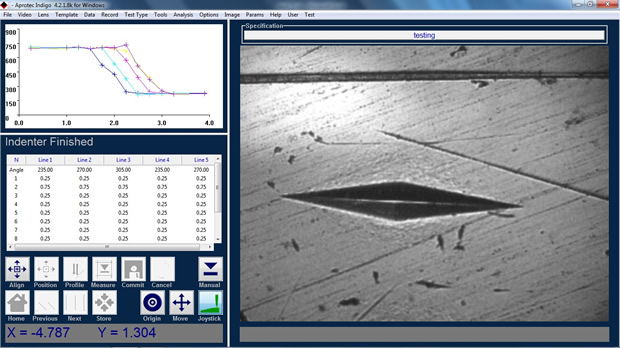

  • Case Harden depths and graphical representations as standard.

Contact us for more information
