Solder Paste Inspection

Non-contact solder paste precision measuring

Z-Check 3D

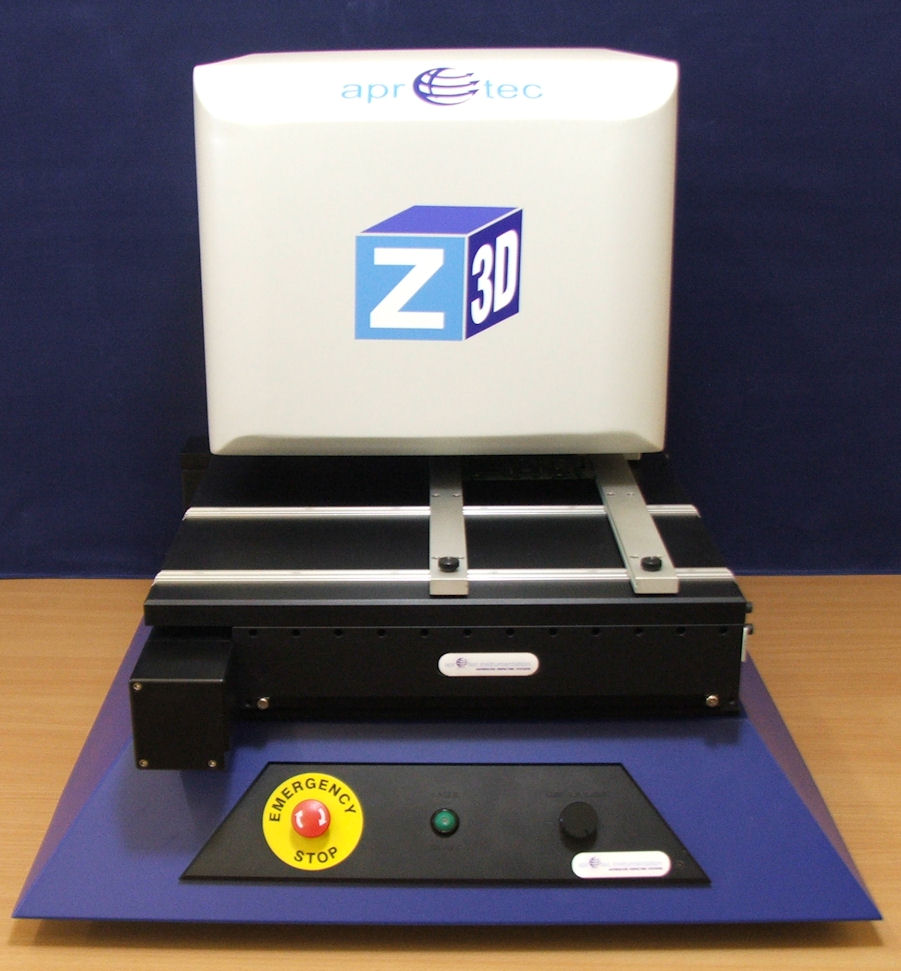

The Z-Check 3D has a highly accurate, motor driven dual axis positioning stage. The large scanning area allows the PCB to remain static whilst multiple measurements are made and recorded, thus greatly enhancing the ability to accurately repeat the measurement of selected pads.

Major Features

• Motorised stage with large scanning area
• Inspection principle – 5 line LED scan
• Gerber File Data Input Programme
• Pad specific measurement
• Laser pointer for pad identification
• Automatic Z-axis focus
• 3 axis measurement and volume
• Full SPC included
• Windows 7 based software

Contact us for more information
