Solder Paste Inspection

Non-contact solder paste precision measuring

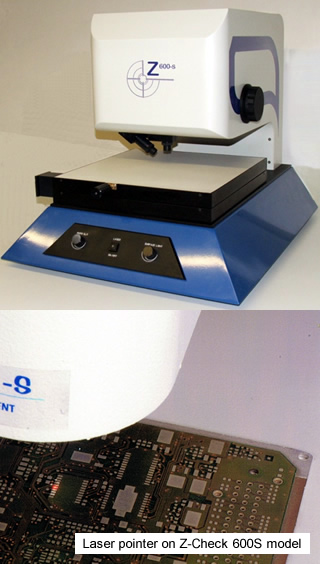

Z-Check 600/600S

The Z-Check 600/600S features a Maglok table which is an X-Y glide stage with electro magnets that lock the X and/or Y axis individually. Once the stage is locked further adjustment is possible by means of the fine-tuning knobs.

Major Features

  • Maglok table with fine adjustment of X and Y axis
  • Laser pointer for pad identification (600S model only)
  • White light source
  • Pad specific measurement
  • Automatic Z-axis focus
  • 3 axis measurement and volume
  • Controls 10 production line with unlimited pads/line (data streams)
  • Full SPC included
  • Windows 7 based software

Contact us for more information
