Z-Check CP50 - Solder Paste Inspection | Aprotec Instrumentation

Solder Paste Inspection

Non-contact solder paste precision measuring

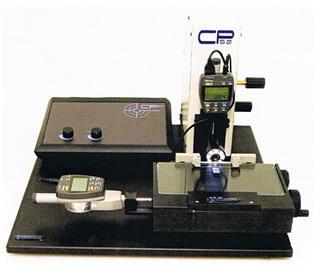

Z-Check CP50

Co-Planetary Inspection

The CP50 allows the operator to make accurante and varied measurements of the legs of any “IC Package”.

Major features:

  • Co-Planetary Inspection
  • Displacement Measurement
  • Height error Inspection

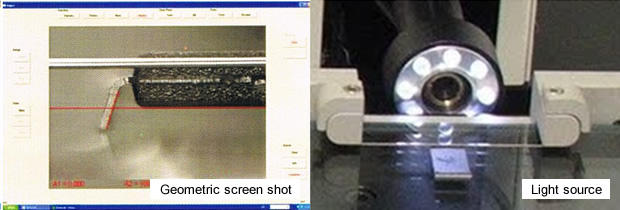

  • Geometric Measurement
  • Micrometer Driven X and Z Axis
  • Dimmable White Light Source
  • Full SPC
  • Windows 7 based software

Contact us for more information
