Translation Stages

Motorised and Manual Positioning Stages

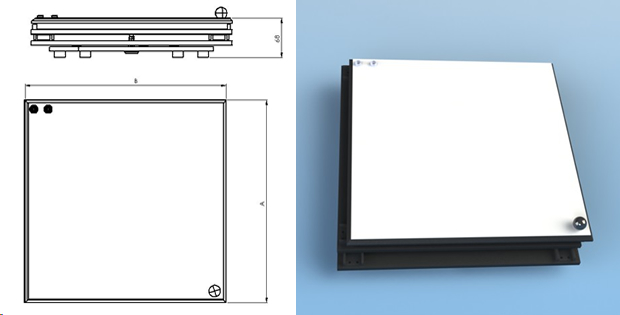

GSR Rotary Glide Stages


  • A Simple, Large working area, Glide stage.
  • Friction Free Running
  • Rotary Stage as standard
  • Anti Static Stud Clips
  • Lockable Thumbwheel

Part No. Designation Movement Stage Size ‘A’ & ‘B’
4004-43-195 GSR 8 200mm x 200mm x 360 Degree’s 300mm x 300mm
4004-43-201 GSR 10 250mm x 250mm x 360 Degree’s 350mm x 350mm
4004-43-206 GSR 12 300mm x 300mm x 360 Degree’s 400mm x 400mm

Contact us for more information
