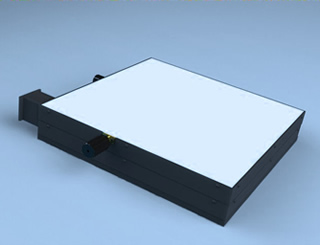

MAG-LOK Electrically Controlled, High Precision X / Y Glide Stages. Mag-Lok is the only workstation you will ever need for quality:

Inspection
Rework
Assembly
Measurement of SMT solder paste
Repair
Touch-Up
Component sampling

...and many, many more applications

Designed to be used in conjunction with virtually any make of visual inspection aid including Vision systems, CCTV’s, free-standing microscopes and magnifiers.

Major Features

Ultra fine glide rails to ensure smooth movement in X/Y and diagonal axis
Electrically braked positioning using 2 button operator controls stops and holds the subject
Up to 300 mm of movement (Optional fine tune facility with Mag-Lok Plus)
Quality built with hardened, anodised aluminium platform, anti static protected work surface & ground
Stable, anti skid, balanced supports guarantees sure footing on any tabletop
Low profile
24V power supply for safe operation
CE approved

Specifications

	Surface Area (Sq) & Footprint	Area of Movement	X/Y Axis Fine Tuning
Mag-Lok 250 (360x360)	961cm (100”)	250mm(10”)	N/A
Mag-Lok 250 Plus	961cm (100”)	250mm(10”)	+/- 20mm
Mag-Lok 300 (410x410)	1600cm (256”)	1600cm (12”)	N/A
Mag-Lok 300 Plus	1600cm (256”)	1600cm (12”)	+/- 20mm
