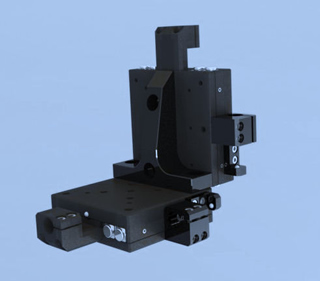

Manual Stages

Crossed roller slides provide precision movement combined with a high load capacity making them suitable for the most demanding applications.

Vernier type micrometers are fitted as standard enabling readings to 0.01mm. Thumbscrew type drives can be fitted if required.

All stages are offered with either end or side drive. We also offer solid top plates or through hole versions.

Contact us for more information



Part No	Axis type	Travel (mm)	Dimensions	Drive Type	Thru Hole Option
10-2100	Single	6.5	30 x 30 x 19	Micrometer	N/A
10-2110	Single	13	30 x 30 x 19	Micrometer	N/A
10-2120	Single	13	50 x 50 x 23	Micrometer
10-2120T	Single	13	50 x 50 x 23	Micrometer	15mm
10-2130	Single	25	50 x 50 x 23	Micrometer
10-2130T	Single	25	50 x 50 x 23	Micrometer	15mm

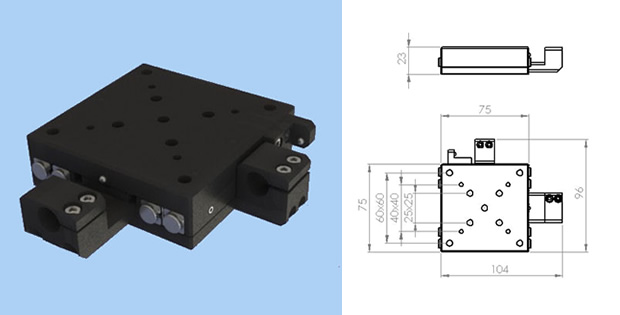

10-2140	Single	13	75 x 75 x 23	Micrometer
10-2140T	Single	13	75 x 75 x 23	Micrometer	25mm
10-2150	Single	25	75 x 75 x23	Micrometer
10-2150T	Single	25	75 x 75 x23	Micrometer	25mm
10-2160	Single	25	100 x 100 x23	Micrometer
10-2160T	Single	25	100 x 100 x23	Micrometer	38mm
10-2170	Single	50	100 x 100 x23	Micrometer
10-2170T	Single	50	100 x 100 x23	Micrometer	38mm
10-2180	Single	25	150 x 150 x23	Micrometer
10-2180T	Single	25	150 x 150 x23	Micrometer	51mm
10-2190	Single	50	150 x 150 x23	Micrometer
10-2190T	Single	50	150 x 150 x23	Micrometer	51mm

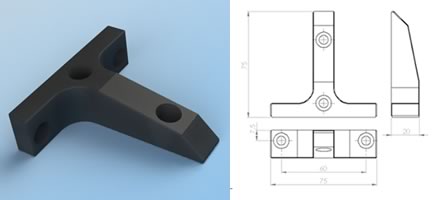

Vertical Mounts

These mounts enable stages to be positioned at right angles to other stages to perform Z axis measurements and for applications requiring vertical movement.

The example shown is compatible with part no’s 10-2140/T and 10-2150/T.

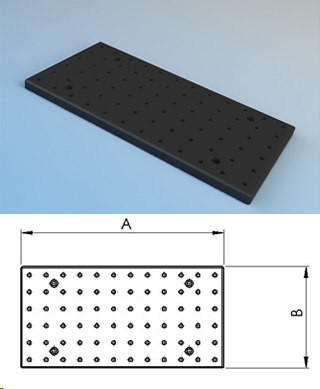

Breadboards

These 12mm solid aluminium plates have 25mm matrix of 6mm holes and a black anodised finish.
Imperial 1” hole pattern is available upon request.

Part Number	Dimensions (mm) A x B x height
10-2200	300 x 150 x 12
10-2201	300 x 300 x 12
10-2202	600 x 150 x 12
10-2203	600 x 300 x 12

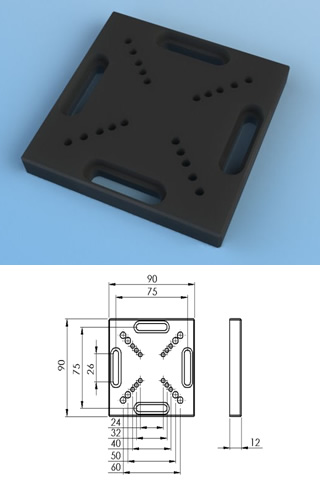

Adaptor Plate

The adaptor plate allows translation stages of differing sizes to be connected to one another or any of the stages to be secured to a standard breadboard.

Part Number	10-2225
